Basic Circuits: Voltage, Current, and Resistance

Electrical circuits play a key role in our daily lives. From powering our homes to running complex technologies, understanding the fundamentals of electricity is vital.

The Importance of Electrical Circuits in Modern Life

Every year, global electricity consumption reaches trillions of kilowatt-hours. This growing demand highlights how intricate our use of electricity has become. The development of electrical circuits began in the early 19th century with pioneers like Michael Faraday and Thomas Edison, paving the way for our modern electrical systems.

What You'll Learn: A Roadmap to Electrical Circuit Basics

This article will cover the essential concepts of voltage, current, and resistance. By grasping these fundamentals, you'll be empowered to understand more complex electrical systems.

Why Understanding Circuits Matters: Practical Applications

Knowledge of basic circuits can lead to better troubleshooting skills, enhanced safety, and the ability to create your own electronic projects.

Voltage: The Electrical Push

Defining Voltage: Potential Difference Explained

Voltage represents the potential energy per unit charge. Think of it like water pressure in a pipe; higher pressure moves water faster.

The formula for voltage is: [ V = \frac{W}{Q} ] where ( V ) is voltage, ( W ) is work done, and ( Q ) is charge.

Measuring Voltage: Common Units and Tools

Voltage is measured in volts (V). To measure it, we often use a tool called a voltmeter. When using a voltmeter, ensure safety by avoiding contact with live wires.

Common household appliances, like light bulbs and microwaves, operate at various voltages, typically 110V or 220V.

Current: The Flow of Electrons

Defining Current: Electron Movement in a Circuit

Current is the flow of electrons through a circuit, measured in amperes (A). It can be calculated using the formula: [ I = \frac{Q}{t} ] where ( I ) is current, ( Q ) is charge, and ( t ) is time.

Measuring Current: Ammeters and Safety

An ammeter measures current. To use it, you need to connect it in series with the component whose current you wish to measure.

In real-life scenarios, an ammeter might show currents ranging from a few milliamperes in small devices to several amperes in larger appliances.

Resistance: Opposing the Flow

Defining Resistance: Hindering Electron Movement

Resistance is the opposition to the flow of current. Ohm's Law describes the relationship between voltage (V), current (I), and resistance (R) with the equation: [ V = I \times R ]

Different factors affect resistance, including the material, length, and cross-sectional area of the conductor.

Measuring Resistance: Ohmeters and Applications

Resistance is measured using an ohmmeter. Most resistors have color codes that indicate their resistance value.

You can calculate total resistance in series by adding the resistors together, and in parallel by using the formula: [ \frac{1}{R_{total}} = \frac{1}{R_1} + \frac{1}{R_2} + \ldots ]

Ohm's Law: The Core Relationship

Understanding Ohm's Law: A Fundamental Equation

Ohm's Law is foundational for circuit analysis. Graphically, it forms a straight line where voltage is proportional to current.

You can solve simple circuit problems by rearranging the formula as needed. For example, if you know the voltage and resistance, you can find current by using: [ I = \frac{V}{R} ]

Practical Applications of Ohm's Law

Understanding Ohm's Law helps in circuit design and troubleshooting. It also assists in power calculations: [ P = IV ] [ P = I^2R ] [ P = \frac{V^2}{R} ]

Putting it All Together: Simple Circuit Analysis

Building a Simple Circuit: Components and Connections

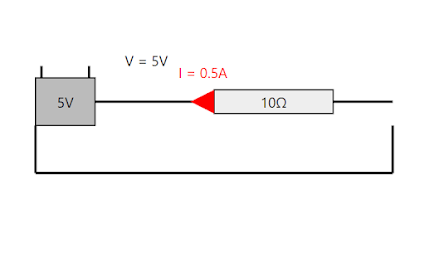

Creating a simple circuit involves connecting a battery, resistor, and ammeter. Here’s a basic diagram:

 Battery --- Resistor --- Ammeter

When building, ensure you're following safety guidelines.

Analyzing Simple Circuits: Applying Ohm's Law

By using Ohm's Law, you can calculate voltage, current, or resistance in your circuit. For example, if you have a 9V battery and a 3Ω resistor, the current flowing through the circuit will be: [ I = \frac{V}{R} = \frac{9V}{3Ω} = 3A ]

In troubleshooting, common issues might include burnt-out resistors or wrong connections, all of which can usually be identified through measurement.

Conclusion: Mastering the Basics of Electrical Circuits

Key Takeaways: Voltage, Current, and Resistance in Action

Understanding voltage, current, and resistance is essential for anyone interested in electricity. These concepts are interconnected, forming the basis of circuits.

Actionable Tips: Further Exploration and Resources

For those wanting to learn more, consider online courses, DIY projects, and safety guides for working with electricity. Always remember to prioritize safety when experimenting with circuits.

Mastering these fundamentals will open doors to more advanced electrical concepts and applications. Get started today, and explore the fascinating world of electricity!
